Hi-Therm+

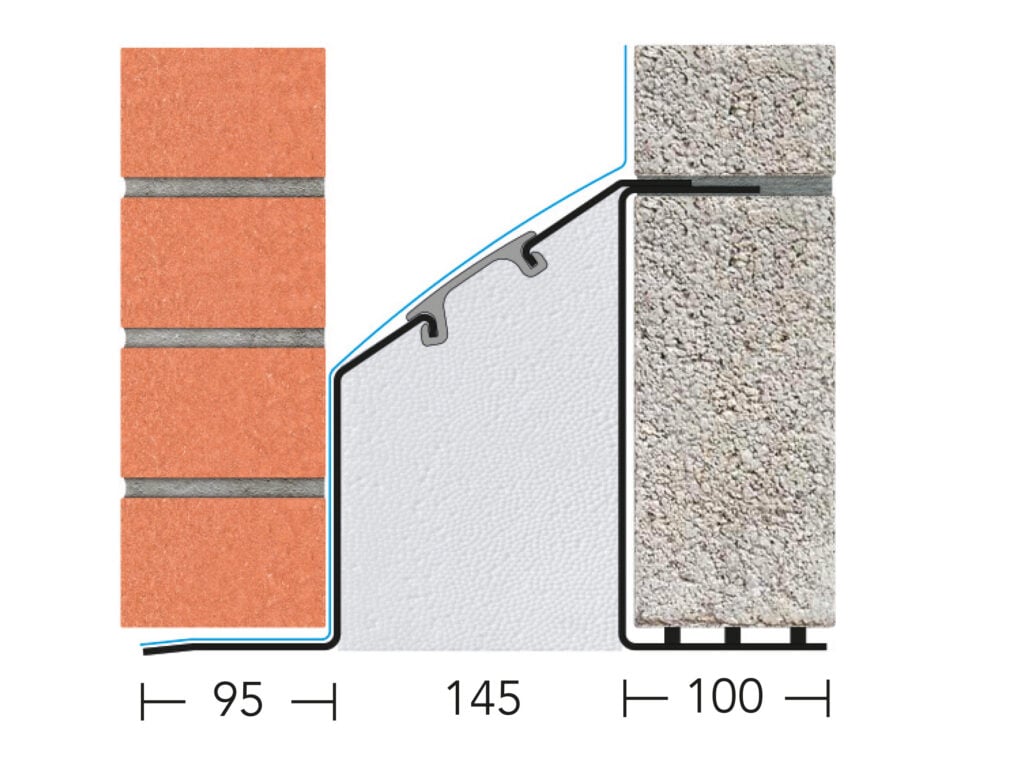

HT/XHD+ 150
Outer leaf (mm)
102
Inner leaf (mm)
100
Loading conditions
Extra Heavy Duty
Max length
3000
Recyclable
100%
HT/XHD+ 150 Lintel lengths
NB: The required length of the lintel is the clear opening span plus an additional 150 mm for end bearing on both sides.
| Lintel length (mm) | Height (mm) | Thickness (mm) | Inner thickness (mm) | Outer thickness (mm) | Total UDL kN 3:1 | Total UDL kN 19:1 | Add to quote |
|---|---|---|---|---|---|---|---|
| 600 | 234 | — | 3.2 | 2.9 | — | 40 |
|
| 750 | 234 | — | 3.2 | 2.9 | — | 40 |
|
| 900 | 234 | — | 3.2 | 2.9 | — | 40 |
|
| 1,050 | 234 | — | 3.2 | 2.9 | — | 40 |
|
| 1,200 | 234 | — | 3.2 | 2.9 | — | 40 |
|
| 1,350 | 234 | — | 3.2 | 2.9 | — | 40 |
|
| 1,500 | 234 | — | 3.2 | 2.9 | — | 40 |
|
| 1,650 | 234 | 3.2 | — | — | 48 | 48 |
|
| 1,800 | 234 | 3.2 | — | — | 48 | 48 |
|
| 1,950 | 234 | 3.2 | — | — | 48 | 48 |
|
| 2,100 | 234 | 3.2 | — | — | 48 | 48 |
|
| 2,250 | 234 | 3.2 | — | — | 48 | 48 |
|
| 2,400 | 234 | 3.2 | — | — | 48 | 48 |
|
| 2,550 | 234 | 3.2 | — | — | 48 | 48 |
|
| 2,700 | 234 | 3.2 | — | — | 48 | 48 |
|
| 2,850 | 234 | 3.2 | — | — | 48 | 48 |
|
| 3,000 | 234 | 3.2 | — | — | 48 | 48 |
|
Need a lintel in a cavity range or length not listed? Contact our specification team today to speak to us about bespoke solutions.
