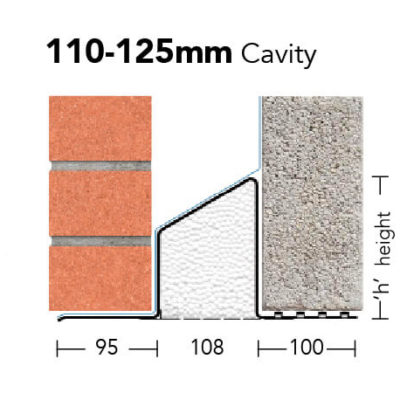

Cavity Wall Steel Lintels
S/K-110
Outer leaf (mm)
102
Inner leaf (mm)
100
Loading conditions
Standard
Max length
4800
Standard
EN 845-2
Recyclable
100%
S/K-110 Lintel lengths
NB: The required length of the lintel is the clear opening span plus an additional 150 mm for end bearing on both sides.
| Lintel length (mm) | Height (mm) | Thickness (mm) | Total UDL kN 3:1 | Total UDL kN 19:1 | Add to quote |
|---|---|---|---|---|---|
| 600 | 100 | 2 | 16 | 13 |
|
| 750 | 100 | 2 | 16 | 13 |
|
| 900 | 100 | 2 | 16 | 13 |
|
| 1,050 | 100 | 2 | 16 | 13 |
|
| 1,200 | 100 | 2 | 16 | 13 |
|
| 1,350 | 100 | 2 | 16 | 13 |
|
| 1,500 | 100 | 2 | 16 | 13 |
|
| 1,650 | 112 | 2 | 21 | 18 |
|
| 1,800 | 112 | 2 | 21 | 18 |
|
| 1,950 | 125 | 2 | 21 | 17 |
|
| 2,100 | 125 | 2 | 21 | 17 |
|
| 2,250 | 163 | 2.5 | 25 | 20 |
|
| 2,400 | 163 | 2.5 | 25 | 20 |
|
| 2,550 | 163 | 2.5 | 25 | 20 |
|
| 2,700 | 163 | 2.5 | 25 | 20 |
|
| 2,850 | 196 | 2.9 | 26 | 22 |
|
| 3,000 | 196 | 2.9 | 26 | 22 |
|
| 3,150 | 197 | 3.2 | 26 | 19 |
|
| 3,300 | 197 | 3.2 | 26 | 19 |
|
| 3,450 | 197 | 3.2 | 26 | 19 |
|
| 3,600 | 197 | 3.2 | 26 | 19 |
|
| 3,750 | 197 | 3.2 | 26 | 19 |
|
| 3,900 | 197 | 3.2 | 26 | 19 |
|
| 4,000 | 197 | 3.2 | 26 | 19 |
|
| 4,200 | 214 | 3.2 | 25 | 20 |
|
| 4,350 | 214 | 3.2 | 25 | 20 |
|
| 4,500 | 214 | 3.2 | 25 | 20 |
|
| 4,650 | 214 | 3.2 | 25 | 20 |
|
| 4,800 | 214 | 3.2 | 25 | 20 |
|
Need a lintel in a cavity range or length not listed? Contact our specification team today to speak to us about bespoke solutions.
