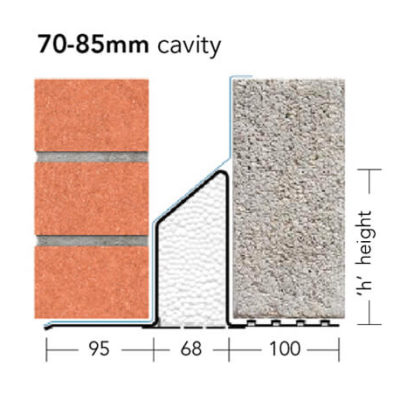

Cavity Wall Steel Lintels
S/K-70
Some test description
Outer leaf (mm)
102
Inner leaf (mm)
100
Loading conditions
Standard
Max length
4800
Standard
EN 845-2
Recyclable
100%
S/K-70 Lintel lengths
NB: The required length of the lintel is the clear opening span plus an additional 150 mm for end bearing on both sides.
| Lintel length (mm) | Height (mm) | Thickness (mm) | Total UDL kN 3:1 | Total UDL kN 19:1 | Add to quote |
|---|---|---|---|---|---|
| 600 | 99 | 1.6 | 12 | 10 |
|
| 750 | 99 | 1.6 | 12 | 10 |
|
| 900 | 99 | 1.6 | 12 | 10 |
|
| 1,050 | 99 | 1.6 | 12 | 10 |
|
| 1,200 | 99 | 1.6 | 12 | 10 |
|
| 1,350 | 88 | 1.8 | 14 | 12 |
|
| 1,500 | 88 | 1.8 | 14 | 12 |
|
| 1,650 | 105 | 2 | 18 | 14 |
|
| 1,800 | 105 | 2 | 18 | 14 |
|
| 1,950 | 130 | 2 | 21 | 17 |
|
| 2,100 | 130 | 2 | 21 | 17 |
|
| 2,250 | 142 | 2 | 21 | 19 |
|
| 2,400 | 142 | 2 | 21 | 19 |
|
| 2,550 | 168 | 2.5 | 26 | 22 |
|
| 2,700 | 168 | 2.5 | 26 | 22 |
|
| 2,850 | 168 | 2.5 | 26 | 22 |
|
| 3,000 | 168 | 2.5 | 26 | 22 |
|
| 3,150 | 206 | 2.9 | 26 | 20 |
|
| 3,300 | 206 | 2.9 | 26 | 20 |
|
| 3,450 | 206 | 2.9 | 26 | 20 |
|
| 3,600 | 206 | 2.9 | 26 | 20 |
|
| 3,750 | 206 | 2.9 | 26 | 19 |
|
| 3,900 | 206 | 2.9 | 26 | 19 |
|
| 4,000 | 206 | 2.9 | 26 | 19 |
|
| 4,200 | 207 | 3.2 | 26 | 22 |
|
| 4,350 | 224 | 3.2 | 26 | 22 |
|
| 4,500 | 224 | 3.2 | 26 | 22 |
|
| 4,650 | 224 | 3.2 | 26 | 22 |
|
| 4,800 | 224 | 3.2 | 26 | 22 |
|
Need a lintel in a cavity range or length not listed? Contact our specification team today to speak to us about bespoke solutions.
