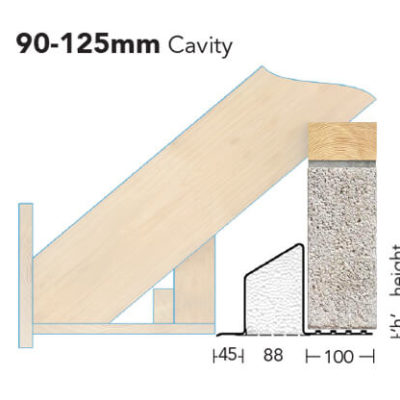

Eaves Lintels
EL/K-50
Inner leaf (mm)
100
Loading conditions
Standard
Max length
2700
Standard
EN 845-2
Recyclable
100%
EL/K-50 Lintel lengths
NB: The required length of the lintel is the clear opening span plus an additional 150 mm for end bearing on both sides.
| Lintel length (mm) | Height (mm) | Thickness (mm) | Total UDL kN | Add to quote |
|---|---|---|---|---|
| 600 | 196 | 2 | 18 |
|
| 750 | 196 | 2 | 18 |
|
| 900 | 196 | 2 | 18 |
|
| 1,050 | 196 | 2 | 18 |
|
| 1,200 | 196 | 2 | 18 |
|
| 1,350 | 196 | 2 | 18 |
|
| 1,500 | 196 | 2 | 18 |
|
| 1,650 | 134 | 2 | 20 |
|
| 1,800 | 134 | 2 | 20 |
|
| 1,950 | 134 | 2 | 20 |
|
| 2,100 | 134 | 2 | 20 |
|
| 2,250 | 147 | 2 | 22 |
|
| 2,400 | 147 | 2 | 22 |
|
| 2,550 | 147 | 2.5 | 25 |
|
| 2,700 | 147 | 2.5 | 25 |
|
Need a lintel in a cavity range or length not listed? Contact our specification team today to speak to us about bespoke solutions.
