Poro-Cav Lintels

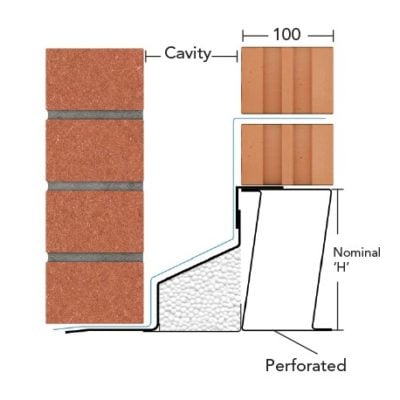

PCI/K-100
Inner leaf (mm)
100
Loading conditions
Standard
Max length
3000
Recyclable
100%
PCI/K-100 Lintel lengths
NB: The required length of the lintel is the clear opening span plus an additional 150 mm for end bearing on both sides.
| Lintel length (mm) | Height (mm) | Total UDL kN | Add to quote |
|---|---|---|---|
| 600 | 150 | 518 |
|
| 750 | 150 | 518 |
|
| 900 | 150 | 518 |
|
| 1,050 | 150 | 518 |
|
| 1,200 | 150 | 518 |
|
| 1,350 | 150 | 518 |
|
| 1,500 | 150 | 518 |
|
| 1,650 | 150 | 518 |
|
| 1,800 | 150 | 518 |
|
| 1,950 | 150 | 825 |
|
| 2,100 | 150 | 825 |
|
| 2,250 | 150 | 825 |
|
| 2,400 | 150 | 825 |
|
| 2,550 | 150 | 920 |
|
| 2,700 | 150 | 920 |
|
| 2,850 | 215 | 1235 |
|
| 3,000 | 215 | 1235 |
|
Need a lintel in a cavity range or length not listed? Contact our specification team today to speak to us about bespoke solutions.
