Timber Frame Lintels

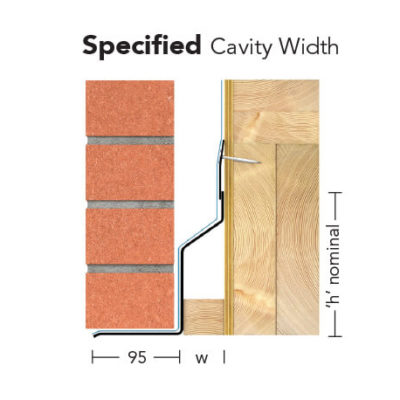

T/K-90
Outer leaf (mm)
102
Loading conditions
Standard
Max length
4800
Standard
EN 845-2
Recyclable
100%
T/K-90 Lintel lengths
NB: The required length of the lintel is the clear opening span plus an additional 150 mm for end bearing on both sides.
| Lintel length (mm) | Height (mm) | Thickness (mm) | Total UDL kN | Add to quote |
|---|---|---|---|---|
| 600 | 136 | 2.5 | 5 |
|
| 750 | 136 | 2.5 | 5 |
|
| 900 | 136 | 2.5 | 5 |
|
| 1,050 | 136 | 2.5 | 5 |
|
| 1,200 | 136 | 2.5 | 5 |
|
| 1,350 | 136 | 2.5 | 5 |
|
| 1,500 | 136 | 2.5 | 5 |
|
| 1,650 | 136 | 2.5 | 5 |
|
| 1,800 | 166 | 2.5 | 8 |
|
| 1,950 | 166 | 2.5 | 8 |
|
| 2,100 | 166 | 2.5 | 8 |
|
| 2,250 | 166 | 2.5 | 8 |
|
| 2,400 | 166 | 2.5 | 8 |
|
| 2,550 | 197 | 2.9 | 9 |
|
| 2,700 | 197 | 2.9 | 9 |
|
| 2,850 | 197 | 2.9 | 9 |
|
| 3,000 | 197 | 2.9 | 9 |
|
| 3,150 | 257 | 3.2 | 12 |
|
| 3,300 | 257 | 3.2 | 12 |
|
| 3,450 | 257 | 3.2 | 12 |
|
| 3,600 | 257 | 3.2 | 12 |
|
| 3,750 | 257 | 3.2 | 12 |
|
| 3,900 | 257 | 3.2 | 12 |
|
| 4,000 | 257 | 3.2 | 12 |
|
| 4,200 | 257 | 3.2 | 12 |
|
| 4,350 | 257 | 3.2 | 12 |
|
| 4,500 | 257 | 3.2 | 12 |
|
| 4,650 | 257 | 3.2 | 12 |
|
| 4,800 | 257 | 3.2 | 12 |
|
Need a lintel in a cavity range or length not listed? Contact our specification team today to speak to us about bespoke solutions.
